Posted in: Pinouts | by Brian Taylor | 2023 May 29

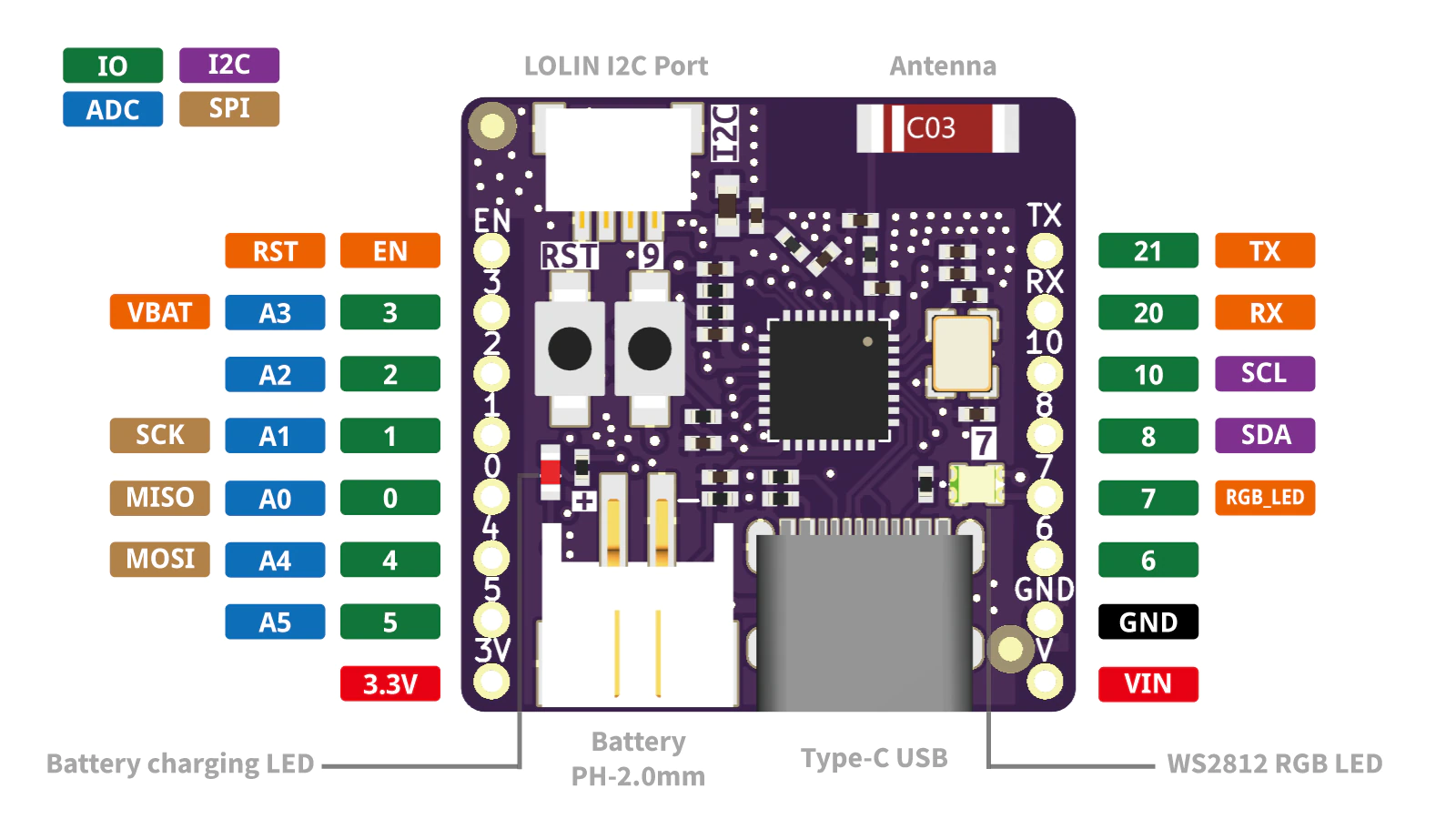

C3 PICO V1.0.0 -- More Picts - Open image

Description:

Origin:	ShenZhen, China
Delivery:	09-19, 09-26
datepaid:	2023-05-16
Received:	2023-05-xx
Quantity:	3pcs
Price:	5.00
Shipping:	3.68
Total:	18.68
PriceEach:	6.2266666666667

C3 PICO V1.0.0 - LOLIN WIFI Bluetooth LE BLE IOT Board ESP32-C3FH4 ESP32-C3 4MB FLASH MicroPython Arduino Compatible

Open image

Specs:
based ESP32-C3 WIFI & Bluetooth LE RISC-V Single-Core CPU
Type-c USB
12x I/O
1x RGB LED
1x LOLIN I2C Port
1x Battery port with 500mA charging
4MB Flash
ADC, I2C, SPI, UART, USB Serial
Compatible with MicroPython, Arduino
Default firmware: MicroPython
Compatible with LOLIN D1 mini shields
size: 25.4x25.4MM
More: https://www.wemos.cc/en/latest/c3/c3_pico.html

Review:
Very nice tiny ESP32-C3 board with even battery manahement but with one small drawback making this board less usable on battery operations. WEMOS used 'low cost & worse' power regulator ME6211C33 with relatively big self-consumption (40µA) and voltage drop (-0.1V@100mA ie up to -0.5V@500mA) which forrage battery uselessly. WEMOS should consider minor upgrade and use batter voltage regulator on this board, for example HT7833 (self-consumption one tenth, ie 4µA) or even better TPL720F33 (internal self-consumption only 2.8µA) for better usability on battery operation with longer endurance.

Package Content:
3 x NO ITEMS, JUST FOR REFERENCE

Quantity: 3pcs

OrderFrom: Aliexpress
