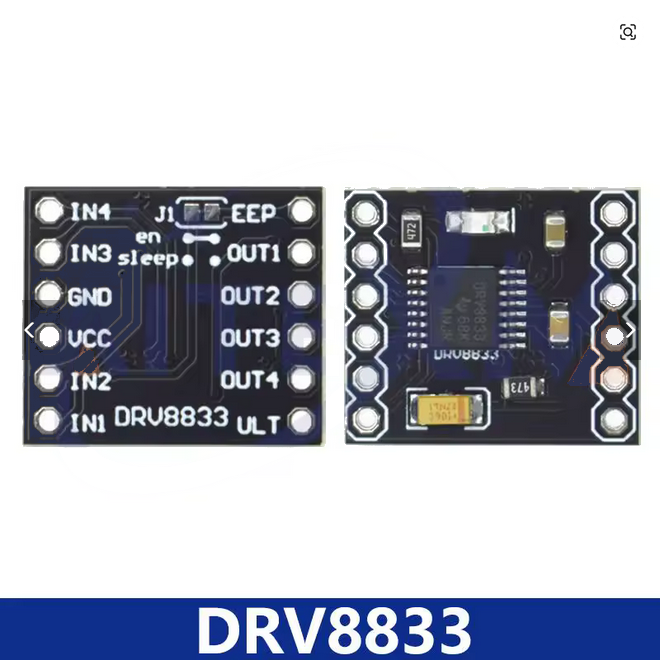

DRV8833 Motor Drive Module 1.5A Dual H Bridge DC Gear Motor Driver Controller Board Kit robotic.icu

robotic.icu: DRV8833 Motor Drive Module 1.5A Dual H Bridge DC Gear Motor Driver Controller Board Kit
Posted in: Specs | by CrunchyBits | 2025-07-16


DRV8833 -- More Picts - Open image

DRV8833 Motor Drive Module Good Heat Dissipation DC Gear Motor Driver 2pcs 6 Pin Silent Stepper Motor Driver 1.5A Single H Bridge DIY Components

Feature:

Origin:	Aliexpress
Delivery:	09-15, 09-18
datepaid:	2025-07-16
Received:	2025-07-xx
Quantity:	2pcs
Price:	5.12
Shipping:	0.00
Total:	10.24
PriceEach:	0.51

1. Versatile Motor Driver: DRV8833 motor drive module can drive both DC motors and 4-wire stepper motors with currents up to 1.5A, offering flexibility for various motor applications.
2. Comprehensive Protection Features: With built-in overcurrent protection, short circuit protection, undervoltage lockout, and overheat protection, 3D printer parts ensures the safety and longevity of your motors and the module itself.
3. Easy to Use Sleep Mode: Activate the low-level sleep mode by disconnecting the J2 solder joint at the back of controller board. This energy-saving feature conserves power when the module is not in use.
4. Efficient H Bridge Design: DC gear motor driver features two sets of H-bridges (OUT1/OUT2 and OUT3/OUT4) that correspond to control inputs (IN1/IN2 and IN3/IN4). This design enables precise motor control and allows for seamless direction changes.
5. Wide Voltage Range and Compatibility: Silent stepper motor driver supports input voltages ranging from 3V to 10V, making it compatible with a wide range of power sources. It is suitable for driving DC motors and 4-wire stepper motors with currents below 1.5A.

Specification:
Origin: Mainland China
Type: Module
Condition: New
Model Number: DRV8833 Motor Drive Module
Input voltage: 3-10V
Single H-bridge output current: 1.5A, capable of driving 2 DC reduction motors.
Built in overcurrent protection, short circuit protection, undervoltage lockout, and overheating protection. With low-power sleep mode.
Purpose: Can drive DC motors below 1.5A and 4-wire stepper motors.
Size: 18.00x16.00x3.00mm
Size: 0.71x0.63x0.12inch

Quantity: 20pcs

OrderFrom: Aliexpress
