robotic.icu: Atomic PI Posted in: Specs | by Brian Taylor | 2020 Jan 02

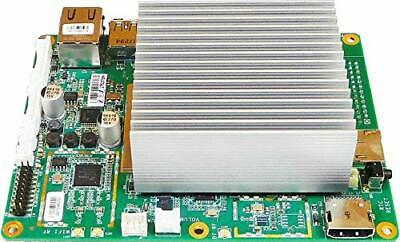

Powerful Atom quad-core processor with 2Gb ram and 16GB Flash on board Gigabit Ethernet, AC WiFi,
Bluetooth, Hi Performance Audio, USB-2, USB-3, SD, GPIO Peripherals include 9-axis sensor, bluetooth and XMOS audio power-amp Boots Linux right out of the box. What will you make with it? Power supply, antennae, and breakout boards sold separately. We're RPi lovers, and the UP board is nice... but it's about price and performance. We feel t's a market for cost-effective x86 maker board. Thus was born the ATOMIC Pi. Genuine Intel Atom x5-Z8350 quad core with 2M Cache. Runs up to 1.92GHz with a 480MHz GPU. Eats RPi for dessert. Beats some desktops. Loaded with memory: 2GB DDR3L-1600, 16GB eMMC, slot for SD expansion (up to 256Gb). Full HDMI port with Intel HD Graphics & audio out USB 3.0 and USB 2.0 ports On board peripherals include: Fast dual band WiFI b/g/n 2.4 & 5GHz WiFi RT5572 IPX connectors on board Bluetooth 4.0 CR8510 Gigabit hardwired RJ45 Ethernet RTL8111G 9-axis inertial navigation sensor with compass BNO055. TTL serial debug and expansion serial ports up to 3.6Mbps Real time clock & battery JST style connectors and a 26-pin header for power & GPIO. Runs on 5V. Typically 4-15 watts. Power supply and wiring sold separately. Legitimate licensed BIOS boots from SD, USB, or Ethernet. Linux comes pre-loaded in flash. Optional breakout shield with screw terminals for easy wiring and USB debug port. Well documented at the component level.
