Quick Electrical Connectors Universal Compact Push-in Conductor SPL Splitter Wiring Cable Connector Butt Terminal Block AWG28-12 robotic.icu

robotic.icu: Quick Electrical Connectors Universal Compact Push-in Conductor SPL Splitter Wiring Cable Connector Butt Terminal Block AWG28-12
Posted in: Specs | by Brian Taylor | 2024 Dec 16

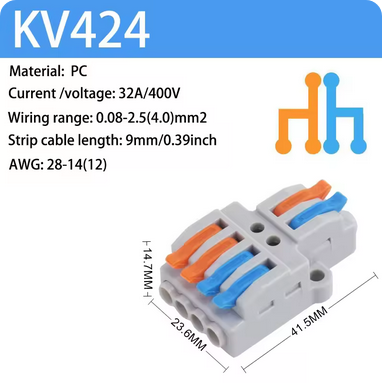

Quick Terminal Block -- More Picts - Open image

Features:
• Safe and durable: The shell is made of flame retardant material, high temperature resistance, reducing potential safety hazards. the conductor is tinned with pure copper, strong conductivity, rust resistance and corrosion resistance.

Origin:	Aliexpress
Delivery:	11-03, 09-26
datepaid:	2024-12-16
Received:	2024-12-23
Quantity:	1pcs
Price:	2.09
Shipping:	1.99
Total:	4.08
PriceEach:	0.82

• High efficiency: 2 conductor/ 3 conductor the lever connector, which is designed to be compact and practical, can connect multiple sets of wires in a very short time instead of taking much effort soldering and wrapping wires in electrical tape.

• Screw fixation: M3 screw mounting hole for T-shape connector. There are screw holes on both sides of fast connector, which is convenient for fixing the wiring, simple but efficient.

• Compatibility: connectors are widely applied for motor, electrical control, power supply, home appliance, machinery and other electrical connections. Suitable for hard wire 0.08-4.0mm²/ AWG28-12, soft wire 0.08-2.5mm²/AWG28-14.

• Practical connectors kit: It is used for building and everyday household wiring: lights, sockets, switches, cars, loudspeakers, electrical boxes, fan controls, etc.

Specs:
Rated Voltage: 600V
Rated Current: 32A
BV: 0.08~4mm² (AWG28-12)
BVR: 0.08~4mm² (AWG28-12)
RV: 0.08~2.5mm² (AWG28-14)
Max Operating Temperature: 95℃

Quantity: 5pcs Other Images (1)
