robotic.icu: 9g TS90M/TS90MD Micro Analog/Digital Servo Full Metal Gear 90/180/270 Degree Controllable Angle 360° Continuous Rotation
Posted in: Specs | by Brian Taylor | 2024 Oct 10

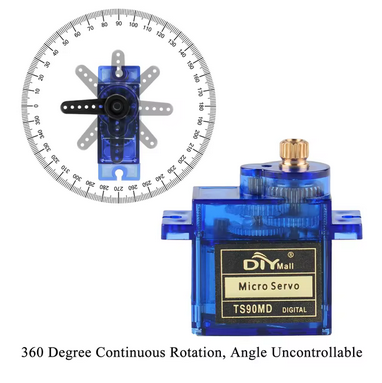

360 Degree Servo -- More Picts - Open image

Description:

Origin:	Aliexpress
Delivery:	09-15, 09-18
datepaid:	2024-10-10
Received:	2024-10-17
Quantity:	4pcs
Price:	3.59
Shipping:	0.00
Total:	14.36
PriceEach:	3.59

9g TS90M/TS90MD Micro Analog/Digital Servo Full Metal Gear 360° Continuous Rotation.

Features:
360 degree continuous rotation metal gear servo for controlling 10 turn pot on power supply.

Details:
9g TS90M/TS90MD Micro Analog/Digital Servo Full Metal Gear 90/180/270 Degree Controllable Angle 360° Continuous Rotation for Airplane Model

Mechanical specifications
Size: 22.4 x 12.5 x 22.8mm
Mechanism limit angle: 200° ± 15°
Output shaft: 20T, diameter: 4.9mm
Gear material: metal

Electrical characteristics
Working voltage: 4.8V-6V
No load speed: 0.11sec/60°
No-load current: 220mA/6V
Locked rotor torque: 2.2Kg-cm/6V
Locked rotor current: 800mA ± 10%
Static current: 5mA-6mA

Control characteristics
Control signal: Pulse width modification
Control system type: Analog controller
Mid point position: 1500usec
Pulse width range: 500~2500usec

Note:
Please use a standard PWM control signal, the period is 20ms, the high level time is 0.5-2.5ms.

270 degrees and 180 degrees can stop at any angle, and the angle can be adjusted. 360 degrees is a continuous rotation, and the angle and speed cannot be controlled. 180 degrees and 270 degrees need PWM 500-2500us，or can only rotate half of the angle.

Color:
Blue

Specification:
Package Included:

Quantity: 4pcs

OrderFrom: Aliexpress

Other Images (1) Aliexpress Order page
