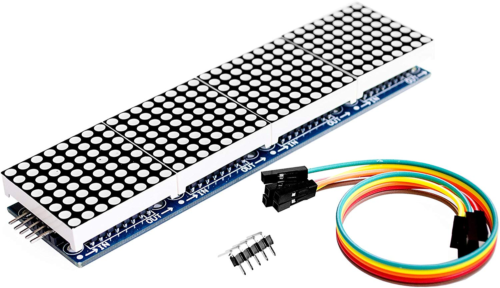

MAX7219 Microcontroller 4 In 1 Clear RED LED Dot Matrix Display Module Arduino robotic.icu

robotic.icu: MAX7219 Microcontroller 4 In 1 Clear RED LED Dot Matrix Display Module Arduino
Posted in: Specs | by Brian Taylor | 2020 Jun 07


MAX7219

This listing is for clear LED, which is ideal if you are placing the module behind a diffuser, If you prefer diffused LED's check Max7219 Diffused LED Matrix modules

Description
MAX7219 is an integrated serial input / output common-cathode display driver, it connects the microprocessor with 8 digits 7-segment digital LED display, you can also connect a bar graph display or 64 independent LEDs.
Features
Bright and Clear LED's ideal if placing behind a diffuser.
A single module can drive a total of 8

Origin:	USA, California
Delivery:	06-22, 06-27
datepaid:	2020-06-22
Received:	2020-06-
Quantity:	2pcs
Price:	7.19
Shipping:	0.00
Total:	14.38

8 dot matrix overcast
The module voltage: 5V
Module Size: 12.8 cm (length) X 3.2 cm (width) X 1.3 cm (height)
With 64 fixing screw holes, diameter : 3mm
Module with input and output interfaces, support for cascading multiple modules
Specification
Voltage : 5V
LEDs : 4 8x8 LED matrix modules
LED Color : Red

Package
1 x 4 segment 4x4 MAX7219 Matrix module.

Shipping
Fast shipping from USA, get it in days not weeks.

MAX7219 PINS	to	esp8266
CS	-	D4
CLK	-	D5
DIN	-	D7

Package Included: 2
