Posted in: Specs | by Brian Taylor | 2022 May 05


ESP8266 12F

Features:

Origin:	Greater China
Delivery:	05-05, 08-09
datepaid:	2022-05-05
Received:	2022-06-07
Quantity:	6pcs
Price:	1.66
Shipping:	0.00
Total:	9.96
PriceEach:	1.66

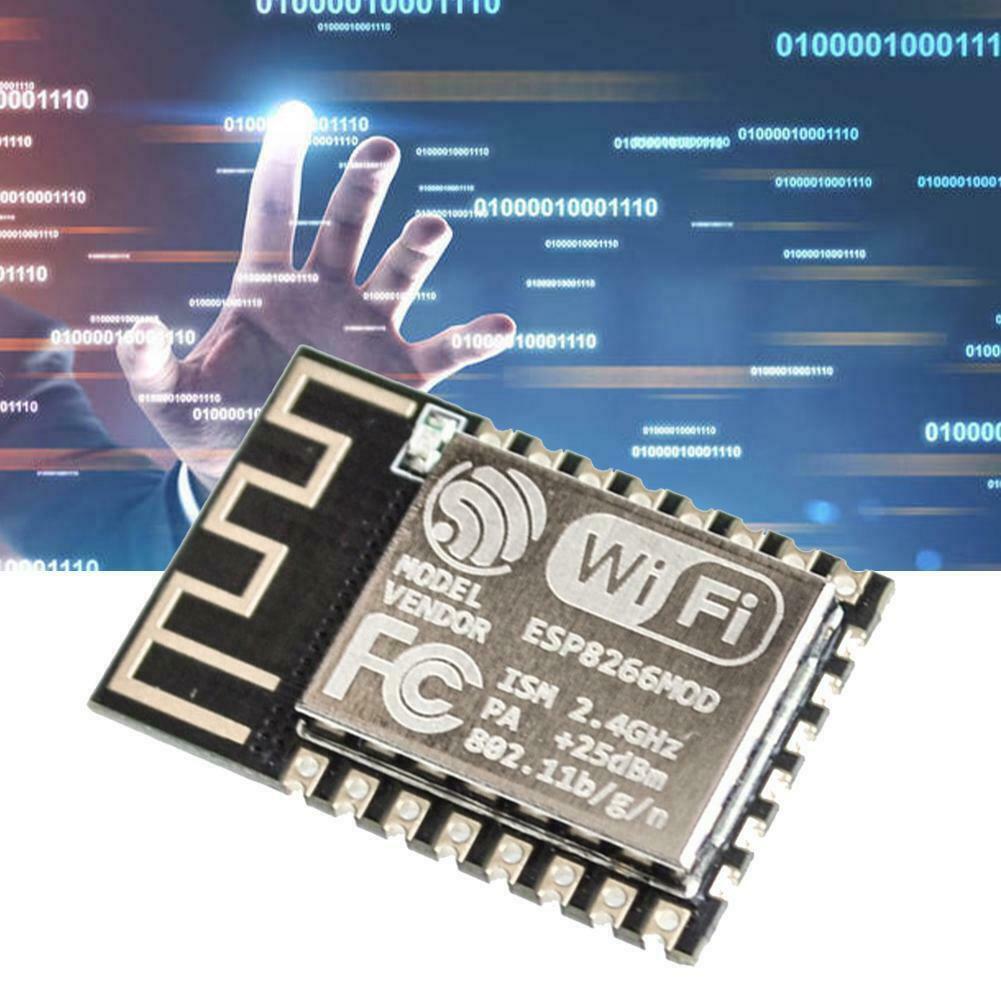

ESP8266 serial WIFI industry milestone, model: ESP12F

ESP8266-12F is an enhanced version of ESP8266-12. It has perfect peripheral circuits, four-layer board technology, enhanced impedance matching, and better signal output. Whether it is stability or anti-interference ability, the PCB antenna has been tested in a professional laboratory and is perfectly matched. After ROHS certification, all have been greatly improved! For users who chose ESP-12 before, it doesnt matter even if they have already made a product. The enhanced version is fully compatible with the previous firmware. The pins are based on ESP-12 and six IO ports and SPI ports are added, making development more convenient and applications. More extensive!

Package included:
1 x ESP8266 ESP-12F Wireless Remote Serial WiFi Module Transceiver Board Module
Overview:
Based on ESP8266 WiFi IC, upgrade of ESP-12E.

Description:
Model: ESP8266-12F
PA +25dBm
Standards Certification: FCC / CE / TELEC
Wireless standards: 802.11b/g/n
Frequency range: 2.4GHz-2.5GHz (2400M-2483.5M)
Data interface: UART / HSPI / I2C / I2S / Ir Remote Contorl GPIO / PWM
Operating voltage: 3.0 3.6V (recommendation 3.3V)
Working Current: Average: 80mA
Operating temperature: -40 ° 125 °

Note:
This module requires a 3.3 volt supply for VCC, and 3.3V logic. It is not 5V tolant. Connect RX or TX on 5V Arduino will destroy this module. You must use a logic level converter, or a 3.3V Arduino The 3.3V supply on the Arduino Uno has inadequate current capabilit to power this module. You must provide a separate, higher 3.3V supply(about 300mA or better)

Package included:
1 x ESP8266 ESP-12F Wireless Remote Serial WiFi Module Transceiver Board Module

Quantity: 6 pcs x 1 eBay Item: 174779654921
