MFRC-522 M5 RC522 RFID Radiofrequency NEW Inducing Reader Sensor for Arduino
robotic.icu: MFRC-522 M5 RC522 RFID Radiofrequency NEW Inducing Reader Sensor for Arduino
Posted in: Specs | by Brian Taylor | 2018 July 14
mfrc522 rfid
Item:
MFRC-522 M5 RC522 RFID Radiofrequency NEW Inducing Reader Sensor for Arduino

This is for tank battle bot...like in the mac game

Price: 1.94
Quantity: 1
Delivery: 2018-07-14
Description:
MF RC522 is applied to the highly integrated read and write 13.56MHz contactless communication card chip. Low-voltage, low-cost, small size of the non-contact card chip to read and write Smart meters and portable handheld devices developed better choice

The MF RC522 use of advanced modulation and demodulation concept completely integrated in all types of 13.56MHz passive contactless communication methods and protocols

14443A compatible transponder signals

The digital part of to handle the ISO14443A frames and error detection.

support rapid CRYPTO1 encryption algorithm, terminology validation MIFARE products

 MFRC522 support MIFARE series of high-speed non-contact communication, two-way data transmission rate up to 424kbit/s

MF RC522 are similar to MF RC500 MF RC530 , but also have the characteristics and differences. Communication between it and the host SPI mode helps to reduce the connection narrow PCB board volume, reduce costs

The MF522-AN module design circuit card reader, easy to use

Low cost, and applies to the user equipment development

The reader and advanced applications development meet the user RF card terminal design/production needs

This module can be directly loaded into the various reader molds, very convenient

Specification:
Operating Current :13-26mA/DC 3.3V
Idle Current :10-13mA/DC 3.3V
Sleep Current: <80uA
Peak Current: <30mA
Operating Frequency: 13.56MHz

Supported card types: mifare1 S50、mifare1 S70, mifare UltraLight, mifare Pro, mifare Desfire

Environmental Operating Temperature: -20-80 degrees Celsius

Environmental Storage Temperature: -40-85 degrees Celsius

Relative humidity: relative humidity 5% -95%

Data transfer rate: maximum 10Mbit/s

Size: RFID-RC522 Module:3.9 x 6 cm The Standard S50 Blank Card :8.5 x 5.4 cm

Diameter of S50 special-shaped card: 3.1(max)

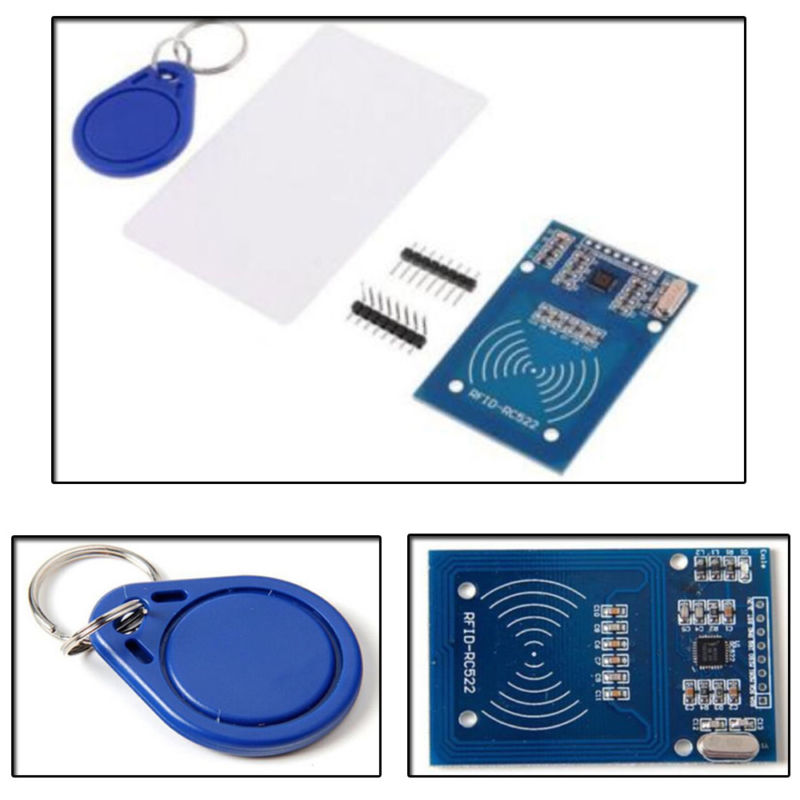

Package List:
1 x A RFID-RC522 Module
1 x The Standard S50 Blank Card
1 x S50 special-shaped card (as shown by the key ring shape)
1 x straight Pin
1 x Curved Pin
