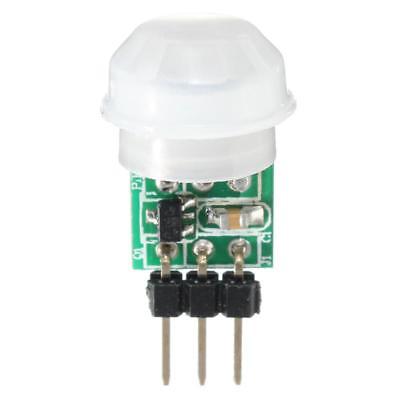

robotic.icu: Mini IR Pyroelectric Infrared PIR Motion Human Sensor Automatic Detector Module
Posted in: Specs | by Brian Taylor | 2018 Jun 09

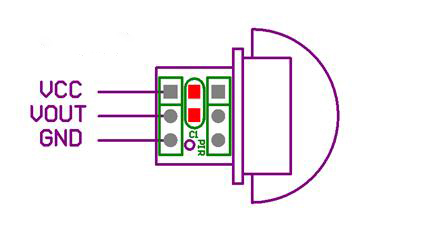

PIR Detector
body sensors modules: a passive body based on the digital intelligent infrared technology, automatic control products. High sensitivity, high reliability. Widely used in various auto-sensing electrical equipment.
Origin: Hong Kong
Delivery: 2017-09-25
datepaid: 2017-09-29
Received: 2018-07-14
Quantity: 1pcs
Price: 1.72
Shipping: 0.00
Total: 1.72


Features:
- Immunity enhancement, internal use of digital signal processing, direct high-low output.
- Repeatable trigger: the sensor output high after, the delay period, if there is human activity in its sensing range, the output will remain high until the people left after the delay, it becomes low (ie: sensor module detects the human body every activity will be automatically extended a period of time delay, and to the last activity time as the starting point of the delay time).

Technical Parameters:
1. Working voltage: DC 2.7-12V;
2. Static power consumption: <0.1mA;
3. Delay time: 2 seconds;
4. The blocking time: 2 seconds;
5. Trigger: can be repeated;
6. Sensing range: ≤100 degree cone angle, 3-5 m; (required depending on the lens)
7. Working temperature: -20 - + 60 ℃
8. PCB szie: 10mm x 8mm
9. Total size: Approx. 12mm x 25 mm
10. Module Lens: Small lens

Package Included:
1 x Mini IR Infrared Pyroelectric PIR Body Motion Human Sensor Detector Module

100% brand new and high quality

Shipping Terms:
Package:1pc
motionPIR.ino eBay Item: 371779296939

eBay Item: 371779296939
