Item Description:
1pc Incremental Rotation Encoder 600 p/r 6mm Shaft 5-24v

Feature:

Origin:	Aliexpress
Delivery:	09-15, 09-18
datepaid:	2025-06-01
Received:	2025-06-xx
Quantity:	2pcs
Price:	6.78
Shipping:	0.00
Discount:	1.25
Total:	12.31
PriceEach:	6.16

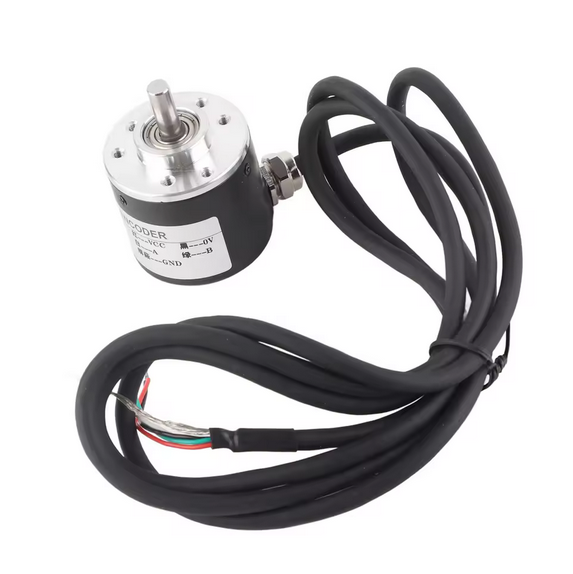

1.This product has 600 p/r (Single-phase 600 pulses /R,Two phase 4 frequency doubling to 2400 pulses).
2.Power source is DC5-24V. Stable working performance and good working condition.
3.AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type.
4. It can be used to measure the rotational rate, Angle and acceleration of the object and the length measurement.
5.Suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machines, steel cut length control, height and weight scale, students racing robots.

Specifications:
brand new
Pulses: 600 p/r (Single-phase 600 Pulses/R,Two phase 4 frequency doubling to 2400 pulses)
Power source: DC5-24V
Shaft: 6x13mm/0.23x0.51”
Size: 38x35.5mm/1.49x1.39”
Output :AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type
Maximum mechanical rate: 5000 R / min
Response frequency: 0-20KHz
Cable length: 1.5 meter

Uses:
1. It can be used to measure the rotational rate, Angle and acceleration of the object and the length measurement
2. Suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machines, steel cut length control, civil measured height human scale, Students racing robots

Notice:
AB 2phase output must not be directly connected with VCC, otherwise, will burn the output triode, because different batches, and may not have the terminal.
(Green = A phase, white = B phase, red = Vcc power +, black = V0)

Purpose:
Dual PowerSupply Control...

Quantity: 2pcs

OrderFrom: Aliexpress
